Flywheels – Single & Dual Mass
AmTech Manufacturing Solutions Guide Options
Our Handy solutions guide can help you determine what manufacturing process is right for your project or product.
Since both flywheel assemblies and flexplate assemblies accomplish the same function and are somewhat similar in appearance, they are often referred to interchangeably, but are in fact two different parts.

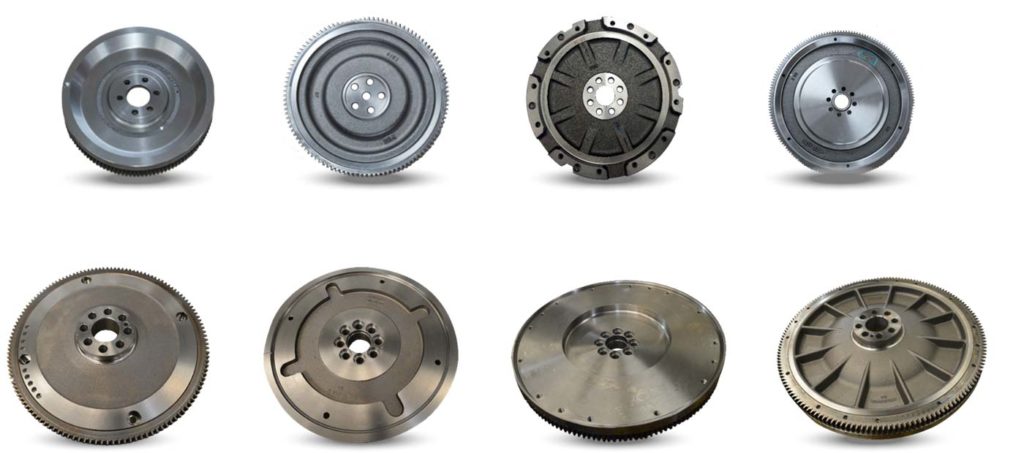

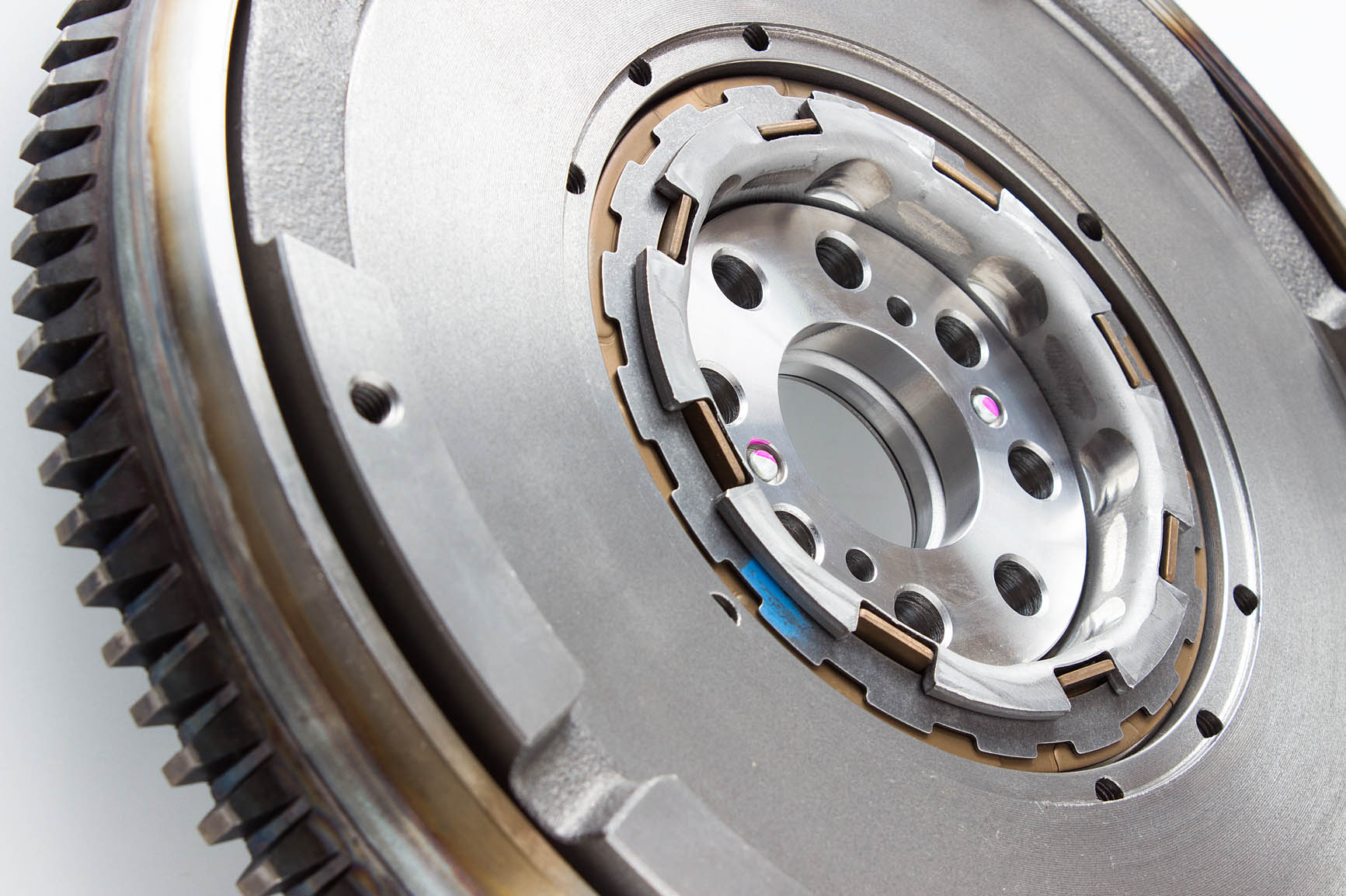

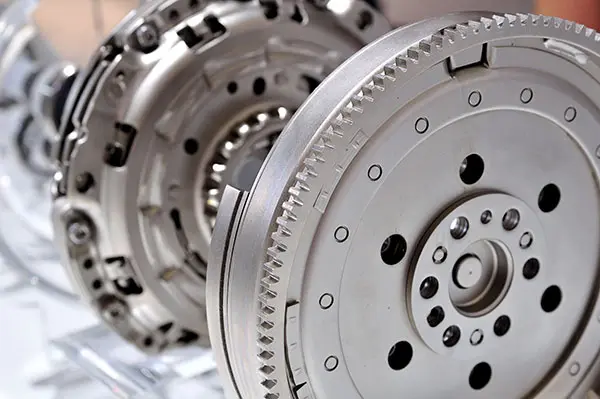

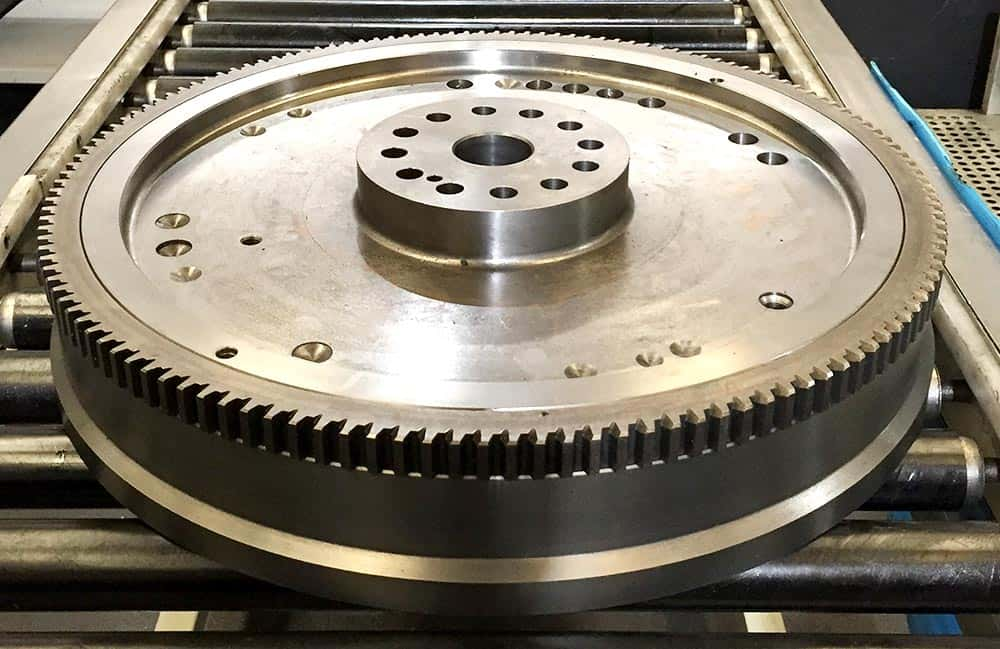

A flywheel gear is used primarily in manual transmissions. It is attached to the engine crankshaft, and holds the ring-gear that is used to crank the engine. The wheel connects directly to the clutch, stores energy to move the vehicle from inertia, and provides a friction surface for the clutch to attach to. Because of this, these parts are usually cast, and are thick and heavy, to allow for the clutch’s surface.
These parts are manufactured through a casting method, and for now, sand casting is the most common production process for these OEM parts. Depending on the application, the materials used are nodular iron, steel or aluminum. Once cast, the wheel is finished by machining and boring.

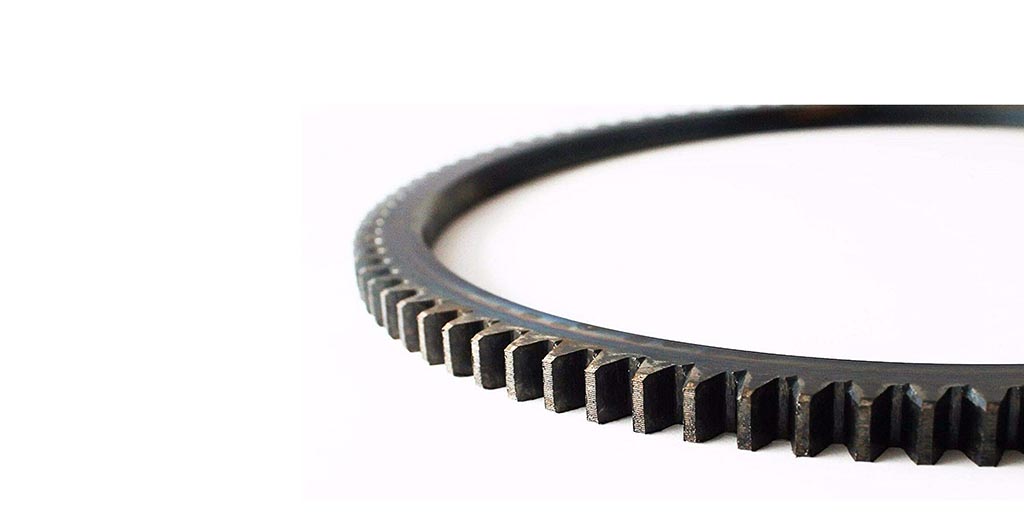

Next, a square or rectangular steel bar of a preset length is bent into a circle configuration and the ends welded together, with the major diameter larger than the finished gear size.
The ring is then heated, and either stamped or bored to size on the minor diameter. Next, the gear teeth are hobbed onto the ring, and hardened to improve strength and resistance. Lastly, the ring is shrunk onto the flywheel.
Materials
- 1045
- QT450-10
- QSTE380/460/420
- HT
- QT600-3
- HT250
- S700MC
- QT500-7
- HT300
- SPHC
Applications
- Automotive
- Construction
- Electrical
- Electronics
- Heavy Equipment
- Industrial Machinery
- Marine
- Medical Devices
- Power Transmission
- Off-Highway
- Pneumatics
- Robotics
Services
- Vibration Fatigue Test
- Bending Fatigue
- Axial Torision Test
- Bench Test
- Impacting Test
- Speed Blasting Test
- Inertia Test
- Casting: Manufacturing, Machining Assembly Capability
- Ring Gear: Raw Parts Manufacturing, Machining, Hobbing, Heat Treatment
- Flexible Flywheel Punching, Assembly Capability
- Mold Design
Specialized Services
AmTech excels in delivering precision-crafted bevel gears, helical gears, plastic gears, ring & pinion sets, spur gears, and worm gears, leveraging advanced investment and die casting techniques, as well as expert machining and forging processes.
Focused Expertise
AmTech is committed to providing top-quality gears, including customized bevel, helical, plastic, ring & pinion, spur, and worm gears, catering to the specific needs of original equipment manufacturer (OEM) partners.
Global Manufacturing Network
Address supply chain complexities confidently with AmTech's integrated and expansive international production network.
Industry Experience
With two decades of specialized experience, AmTech offers unparalleled reliability in OEM gear manufacturing, ensuring premium quality and precision in every product.
Fill out the form to instantly download your copy and explore how we can elevate your projects!
Download Our Presentation
"*" indicates required fields
Can you make prototypes?
Absolutely. Amtech OEM offers comprehensive rapid prototyping services. Our capabilities extend to producing custom prototypes using advanced techniques like 3D printing and precision machining. This service is crucial for validating design and function before mass production. We work closely with our clients to ensure prototypes meet stringent specifications and industry standards.
Will you help us in the design stage?
We're dedicated to collaborating with you in the design phase, offering value-add engineering services for manufacturability, material selection, and technical feasibility. This ensures cost-effective, high-quality designs for your industry.
What is the lead time for samples?
We strive for prompt sample delivery. Our process includes a comprehensive review of design specifications, selection of optimal manufacturing methods (such as investment casting or precision machining), and quality control. This ensures that our samples promptly and professionally reflect the standards of full-scale manufacturing.
Will you inventory our parts?
Yes, inventory management is a critical component of our service offerings. We employ a Just-In-Time (JIT) delivery system to optimize supply chain efficiency. This approach reduces inventory costs for our clients and ensures timely delivery, aligning with lean manufacturing principles.
What is the turnaround time for quotation?
We typically provide a quotation within 7-10 business days, depending on the project's complexity. Upon receiving an initial inquiry, we respond within 24-48 hours to arrange a detailed discussion about the project requirements. This discussion helps us understand the technical details, volume, and specific needs of your project, allowing us to provide a precise and comprehensive quote.
What kind of quantities do you produce?
AmTech OEM excels in catering to diverse production volumes, from mid to high-volume manufacturing. Our processes prioritize flexibility, allowing us to adapt to varying demand levels while upholding high standards of quality and efficiency.
What kind of quality standards do you have at AmTech OEM?
Our commitment to quality is unwavering. IATF16949, QS9000, and ISO 9001 certified production facilities. Our Quality Department employs advanced technology and stringent processes to meet diverse and demanding industry requirements. Whether for large OEMs or family-owned businesses, our goal is to deliver exceptional product quality tailored to each client's specific needs.
Can you provide 3D printing samples?
Yes, we have invested in cutting-edge 3D printing technology to offer a wide range of sample production options. This capability allows us to provide rapid and detailed prototypes, aiding in design validation and iteration. We encourage inquiries about our 3D printing capabilities to explore how we can best meet your prototyping needs with our advanced technological resources.
