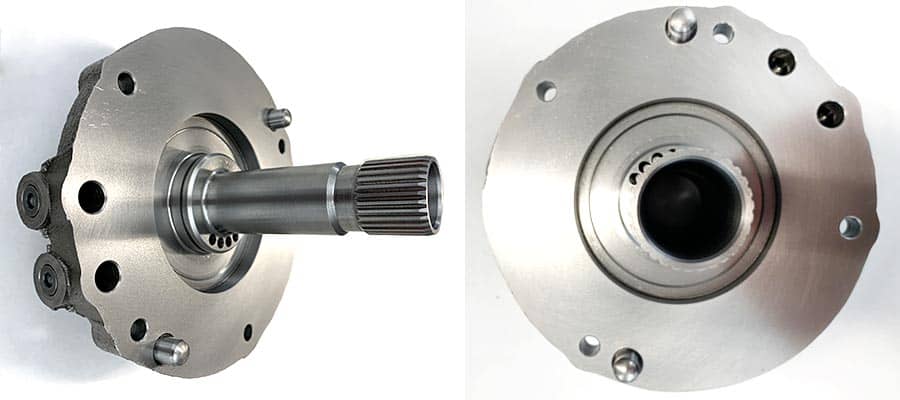

AmTech OEM manufactures this cast shaft for an industrial vehicle OEM in North America. This HC-84 steel shaft is cast from one solid piece.
Next, the steel casting is precision machined in several operations and the splines are hobbed.
The cast shaft measures 6.71″ long.
Several plugs, dowels and seals are assembled after heat treating, to finish the shaft manufacturing process.
Project Details
Industry: Industrial Vehicles
Dimensions: 6.71" x 7.08"
Gear Teeth: 32
Material: Customer specified anti-corrosion lubricant
Tightest Tolerances:±0.001"
Processes: Steel Casting, CNC Machining, Centerless Grinding, Spline Hobbing, Heat treating, Washing and Anti-rust packing
Usage: 30,000
