Input Spline Shaft

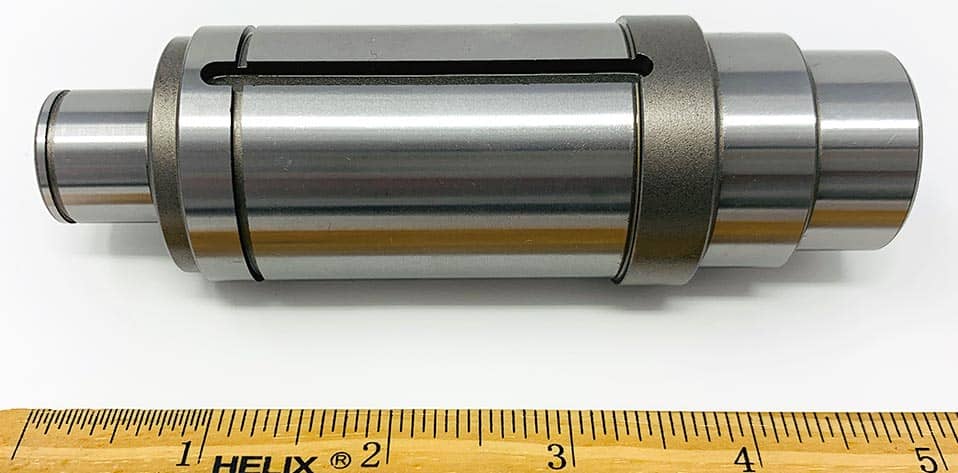

Input shaft manufacturing project

AmTech OEM manufactures this input spline shaft for one of the largest motion control technology OEMs in North America. This precision machined shaft is made with SAE 8620 steel and functions as a driver in a control assembly that manages a synchronous motor.

The Internal spline is nearly 1″ deep, with 9 spline teeth and very tight tolerances.

Project Details

Industry: Robotics

Length: 4.95"

O.D.: 1.60"

Material: 8620 Steel

Tightest Tolerances: +0.0005 / -0

Processes: CNC Machining, Spline Broaching, Keyway Drilling, Centerless Grinding, Heat treating, Washing and Anti-rust packing

Usage: 1,800
