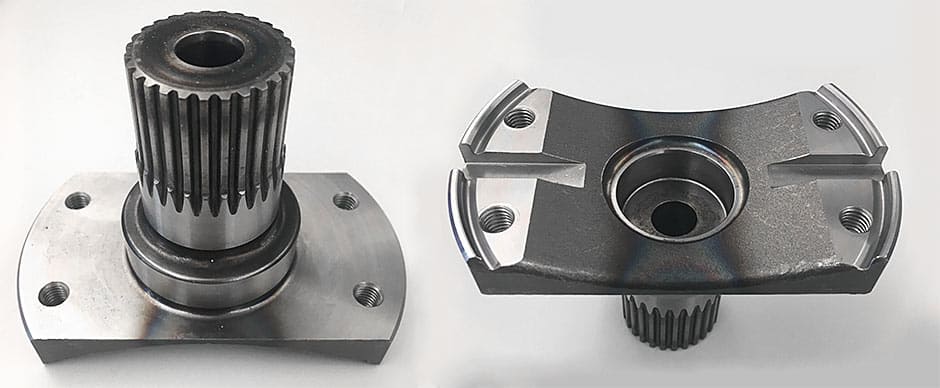

AmTech OEM supplies this involute spline output shaft to a large manufacturer in the material handling equipment and vehicle industry. These shafts are used in hydraulic lift valves that control fluid flow speeds from the input port to the output port.
This 4.03 inch shaft is CNC machined, drilled, spline hobbed, deburred and then quenched / tempered to an HRc level of 52-60.
Project Details
Industry: Materials Handling Equipment
Length: 4.03"
OD: 4.50"
Material: CSAE 1045
Tolerances: ±0.002"
Processes: CNC milling, drilling, spline hobbing, OD grinding, deburring, cleaning and rustproofing
Usage: 9,000
