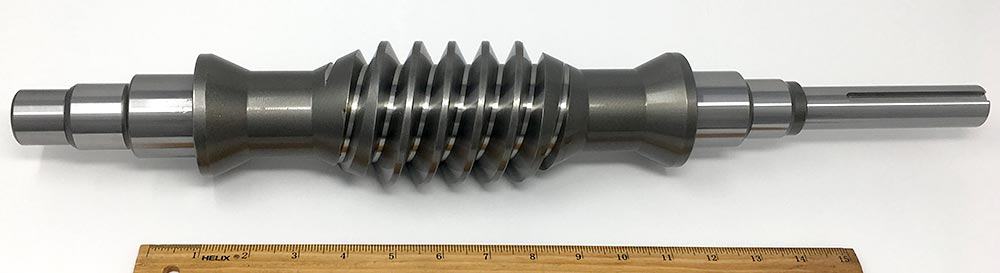

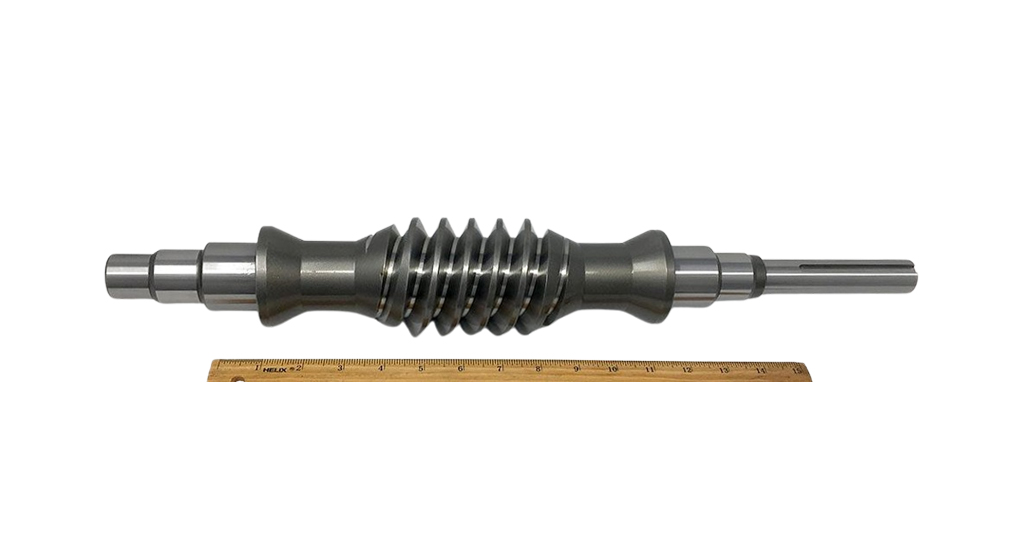

AmTech OEM manufactures this worm shaft for one of the power transmission OEMs in North America. This precision manufactured shaft is made with 8620 steel, has 2 starts, left handed orientation and 2.6836 pitch diameter.
The keyway slot is 3.5 inches long.
Finally, the worm shaft includes precision ID center drilling on both ends.
Project Details
Industry: Power Transmission
Length: 21.36"
O.D.: 3.13"
Material: 8620 Steel
Tightest Tolerances: +0.002" / -0
Processes: Worm Cutting, CNC Machining, Centerless Grinding, Heat treating, Washing and Anti-rust packing
Usage: 200
